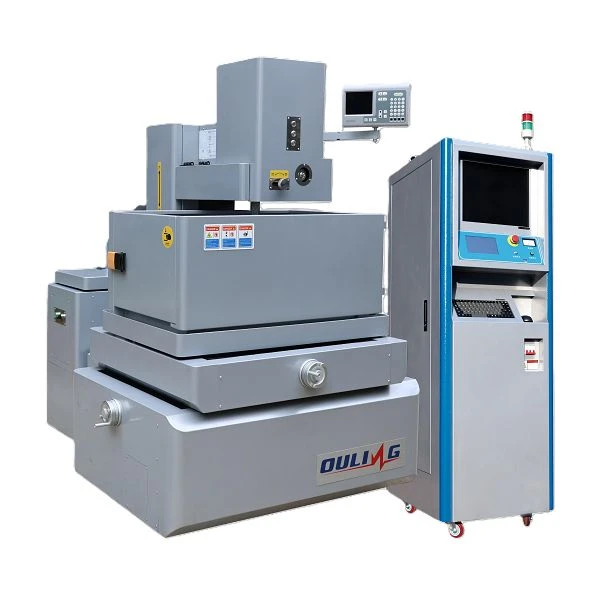

Mechanical Specifications
|
Item |
Specification |
|
Model |
OL400CT |
|
Work Table Size |
470 × 740 mm |
|
X/Y Axis Travel |
320 × 400 mm |
|
U/V Axis Travel |
60 × 60 mm |
|
Z Axis Travel |
280 mm |
|
Max. Workpiece Thickness |
300 mm |
|
Max. Workpiece Weight |
300 kg |
|
Machine Body Weight |
1950 kg |
|
Machine Floor Area |
1800 × 1400 × 2000 mm |
Technical Parameters
|
Item |
Specification |
|
Max. Taper Angle / Thickness |
+6° / +15° / ±30° / 80 mm |
|
Max. Machining Speed |
200 mm²/min |
|
Max. Wire Feeding Rate |
Up to 11.4 m/sec (Adjustable) |
|
Positioning Accuracy |
±0.01 mm |
|
Repeated Positioning Accuracy |
±0.004 mm |
|
Optimal Machining Accuracy |
±0.003 mm |
|
Optimal Surface Roughness |
Ra 0.8 μm |
|
Molybdenum Wire Diameter |
0.10 – 0.25 mm |
|
Power Supply |
3 Phase / 380V / 50Hz |
|
Power Consumption |
3 kVA |
Standard Configuration
|
Item |
Configuration |
|
Axis Linkage |
XYUV Axis Simultaneous |
|
Guide Rail |
Linear Guideway |
|
XYUV Axis Drive |
Stepper Motor / Servo Motor |
|
Z Axis Drive |
Hybrid Motor |
|
Central Lubrication System |
Automatic |
|
Dielectric Tank Capacity |
110 L |
|
Controller |
Vertical Control Cabinet |
|
Software Platform |
Windows XP / Windows 7 |
|
Control System |
Auto-cut / Win-cut / X8 |
|
Language Display |
Chinese / English / Russian |
|
Monitor |
17" LCD |
|
Digital Readout Display |
XY Axis DRO (5 μm) |
|
CNC Instruction |
Standard ISO Code |
|
Transmission Type |
USB / LAN |
FAQ
Q: What Materials Can The OL400CT Process?
A: The machine can process various conductive materials including steel, stainless steel, carbide, copper, aluminum, titanium alloys, and tool steels.
Q: Does The Machine Support Taper Cutting?
A: Yes. The OL400CT supports taper machining up to +6°, +15°, and ±30° within 80mm workpiece thickness.
Q: What Wire Diameter Is Supported?
A: The machine supports molybdenum wire diameters from 0.10mm to 0.25mm.
Q: Is Servo Motor Configuration Available?
A: Yes. The XYUV axis drive can be configured with stepper motors or servo motors according to customer requirements.
Q: Which Languages Are Supported By The Control System?
A: The control system supports Chinese, English, and Russian language interfaces.
Q: What Industries Commonly Use This Cnc Wire Erosion Machine?
A: It is commonly used in mold manufacturing, automotive parts processing, aerospace, medical device manufacturing, and precision tooling industries.
