Product Specifications
| Mechanical Specification | OL400CT | |
| Work table size | 470*740mm | |
| X/Y axis travel | 320*400mm | |
| U/V axis travel | 60*60mm | |
| Z axis travel | 280mm | |
| Max.workpiece thickness | 300mm | |
| Max. workpiece weight | 300kg | |
| Machine body weight | 1950kg | |
| Machine body floor area | 1800*1400*2000mm | |
| Product Parameters | ||
| Max. taper angle/ thickness | ±6°/ ±15°/±30°/80mm | |
| Max. machining speed | 200mm²/min | |
| Max. wire feeding rate | 1~11.4m/sec (frequency adjustable) | |
| Positioning accuracy | ±0.01mm | |
| Repeated positoning accuracy | ±0.004mm | |
| Opitimal machining accuracy | ±0.003mm | |
| Opitimal surface roughness | Ra 0.8μm | |
| Molybdenum wire diameter | 0.10~0.25mm | |
| Power supply | 3 phase/380V/50Hz | |
| Power consumption | 3kVA | |
Standard Configuration
| Axis linkage | XYUV axis simultaneous | |
| Guide rail | Linear guideway | |
| XYUV axis drive | Stepper motor/servo motor | |
| Z axis drive | Hybrid motor | |
| Central lubrication system | Automatic | |
| Dielectric tank capacity | 110 L | |
| Controller | Vertical control cabinet | |
| Software platform | Window XP/Window 7 | |
| Control system | Auto-cut/ Win-cut/X8 | |
| Language display | Chinese/English/Russian | |
| Monitor | 17" LCD | |
| Digital readout display | XY axis DRO (5μm) | |
| CNC instruction | Standard ISO code | |
| Transmission type | USB/LAN | |
Applications

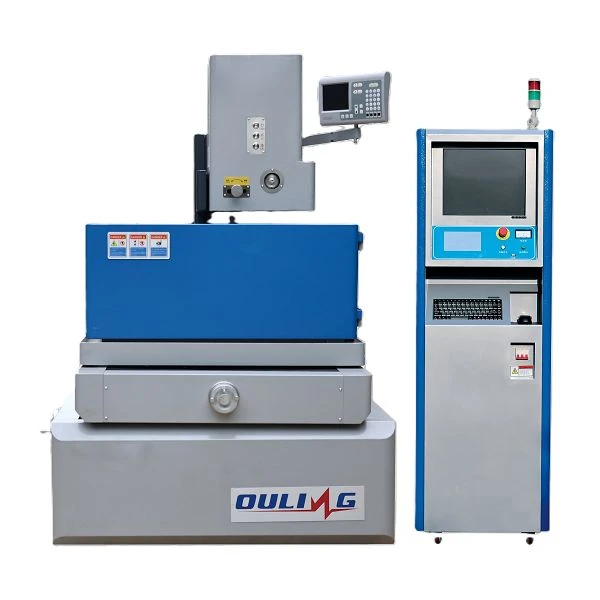

The OL400CT CNC wire machine is suitable for:
- Precision mold machining
- Metal die cutting
- Tool manufacturing
- Mechanical parts processing
- Precision component production
Applicable materials include steel, stainless steel, copper, aluminum, carbide, and other conductive metals.
FAQ
Q: What Industries Use This CNC Wire Machine?
A: It is commonly used in mold manufacturing, machinery processing, automotive parts, and precision tooling industries.
Q: What Is The Maximum Workpiece Thickness?
A: The machine supports workpieces up to 300mm thickness.
Q: Does The Machine Support Taper Cutting?
A: Yes, the OL400CT supports taper cutting for precision mold applications.
Q: What Control Languages Are Available?
A: Chinese, English, and Russian are supported.
