Since its establishment in 2010, Taizhou Ouling CNC Equipment Co., Ltd. has been renowned for the stable performance of its wire cutting machine tool, medium-speed wire cutting machine and high-speed wire cutting machine.
Focus on details, continuous innovation. Since 2015, our company has collaborated with Beijing Digital Grand Technology Co., Ltd. (a leading Chinese industrial software and industrial internet company) to develop the CAXA-CAM wire cutting system. Additionally, we have partnered with professors and experts from Shanghai University of Technology to establish a technical research and development team. After three years of focused research and development, we have achieved significant breakthroughs in the field of adaptive intelligent high-frequency technology. A single set of electrical parameters can process workpieces of any material with thicknesses ranging from 40mm to 200mm. This innovative technology effectively addresses the challenges faced by the wire cutting industry, including reliance on skilled operators and operational complexity!
Since 2020, our company has established a strategic partnership with a new materials technology company in Jiangsu Province, setting up a wire cutting machine tool production base in the Taizhou High-Tech Development Zone. Based on environmentally friendly mineral castings, the company is dedicated to the design, research, development, and manufacturing of environmentally friendly precision wire cutting machine tools.
2010
Established the Taizhou Ouling brand, committed to providing comprehensive solutions for electrical discharge machining (EDM)
2014
Renowned in the industry for its stable performance.
2015
Collaborated with CAXA-CAM wire cutting systems, a subsidiary of a leading Chinese industrial software and industrial internet company, and formed a technical research and development company with multiple professors and experts from Shanghai University of Technology
2016
Obtained EU CE certification for exports and multiple utility model patents.
2020
Developed adaptive intelligent high-frequency technology, achieving significant breakthroughs. Entered into a strategic partnership with a new materials technology company in Jiangsu Province, establishing a wire cutting machine tool production base in the Nantong High-Tech Development Zone, Jiangsu Province. The base focuses on the design, research, development, and manufacturing of environmentally friendly precision wire cutting machine tools using new eco-friendly mineral castings as the foundation.
2022
2024
- Company Name: Taizhou Ouling CNC Equipment Co., Ltd.
- Company Location: Hailing Economic Development Zone, Taizhou City, Jiangsu Province
- Company Nature: A professional manufacturer of EDM wire cutting machines with strong collaboration with universities, possessing independent R&D and production capabilities
- Main Products: Medium-speed wire cutting machines, high-speed wire cutting machines, and other series of products
- Guiding Principles: Quality first, service first, customer-centric
- Service Philosophy: Customer-centric, emphasizing product quality and after-sales service, providing "24/7 one-stop" concierge service
- Coopera;tion Vision: Seeking mutually beneficial partnerships with mold manufacturing companies and metal processing enterprises for joint development
Taizhou Ouling CNC Equipment Co., Ltd. is a manufacturer specializing in the research, development, production, and sales of electrical discharge machining (EDM) equipment. The company's main products include: high-precision servo-driven medium-speed wire cutting machines, high-speed fast-wire cutting machines, and fully CNC-controlled mirror-finish EDM machines. These products are renowned for their exceptional quality (high precision, high efficiency, high surface finish, low material loss, and high stability), and are widely sold in the market, with exports to major industrial nations worldwide. They are widely applied in various industries such as military, automotive manufacturing, aerospace, precision medical equipment, and daily consumer goods processing.
Taizhou Ouling CNC Equipment Co., Ltd. keeps pace with the times, continuously innovating and breaking new ground. With customer needs as its foundation, the company is committed to becoming a technical benchmark enterprise in the medium-speed wire cutting machine tool industry, providing users with superior-quality products and comprehensive, high-quality services.
Application: Tailored to Key Industries Worldwide
Our wire EDM machines are versatile for conductive metal materials and excel in industries requiring high precision and complex cutting:
Mold & Die Industry

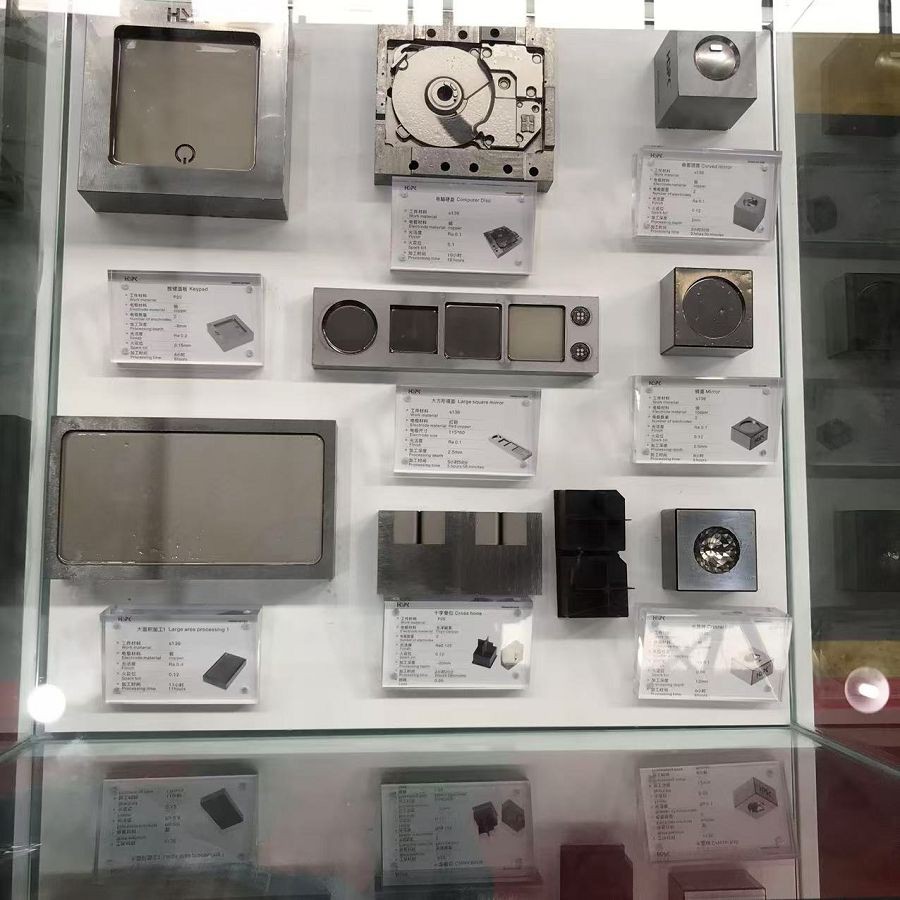

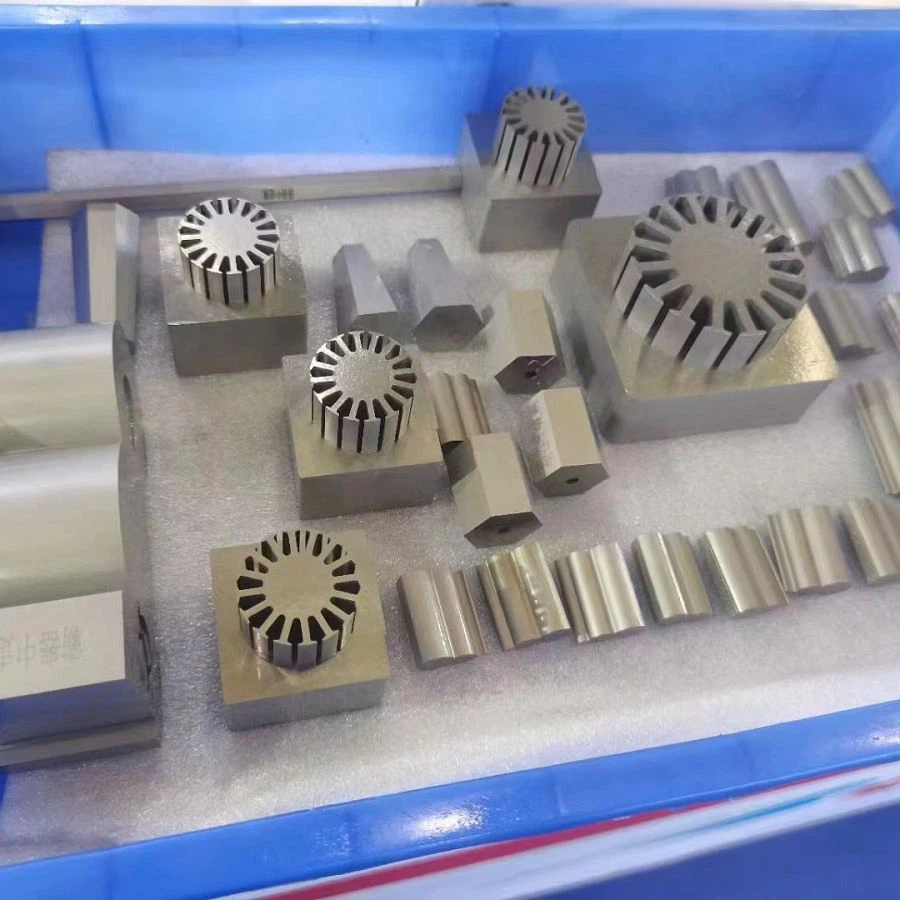

Precision cutting of complex mold cavities, cores, and punches (e.g., plastic injection molds, stamping dies). It can handle hard-to-machine mold steels (e.g., H13, S136) with ±0.002mm tolerance.
Aerospace Industry
Processing of high-hardness alloy parts, such as titanium alloy engine components, turbine blades, and aircraft structural parts-where non-contact cutting avoids material deformation.
Automotive Industry
Manufacturing of precision auto parts, including engine valve seats, transmission gears, and sensor housings. It improves production efficiency by 25% compared to traditional milling.
Medical Device Industry
Cutting of small, complex medical parts (e.g., surgical instruments, orthopedic implants) with strict biocompatibility requirements, as the process leaves no burrs or material contamination.
Characteristics of Ouling Wire-Cut EDM Machines
Mechanical parts
Machine bed is constructed from high-strength cast iron (HT250) with T- shaped base and C- frame column, providing sufficient rigidity and excellent precision stability.
XY axis choose to use linear guide and linear dual-nuts ball screw, to ensure sensitive transmission, enhance and maintain the machining accuracy.
Automatic centralized lubrication system utilize electronically timed pump to ensures easy maintenance and smooth operation.
Wire drum adopts linear guide, and wire feeding speed was autonomously controlled by frequency converter to matching different materials and different thickness of work piece.
All moving components on machine are equipped with electrical, hydraulic, and mechanical interlock protection mechanisms.
The machine employs diamond ceramic guide wheels and enclosed ceramic V-type wire guides.
Electrical parts
Control system Auto-Cut was based on the Windows XP platform, the program can be infinitely large, with many functions such as pitch compensation and backlash compensation.
The control cabinet adopts industrial computer to protect high reliability and stability for long-term use.
The latest intelligent power supply integrates a high-efficiency discharge module,allowing each pulse to exert its maximum energy.
The internal parts of the electrical cabinet are all domestic and international first-tier brands to ensure long-term reliability.
The numerical control power supply has an adaptive control loop, which can lower the wastage of molybdenum wire.
Features of Machine Tool Castings
High strength and high rigidity integrated bed
All the overall bed adopts high-grade HT250 as cast iron. It uses artificial aging (secondary heat treatment) and natural aging method to remove internal stress, and suppress the deformation caused by high speed action to a minimum. Therefore it can provide the best rigidity, stability
and precision retention.
Working Principle of Wire-Cut EDM Machines
In wire electrical discharge machining (WEDM), also known as wire-cut EDM and wire cutting, a thin single-strand metal wire, usually molybdenum wire, is fed through the work piece. Wire cut EDM is typically used to cut plates and to make punches, tools, and dies from hard metals that are difficult to machine with other methods. The wire, which is constantly fed from a wire drum, is held between upper and lower diamond guides which is centered in a water nozzle head. The guides, usually CNC-controlled, move in the X–Y plane. The upper guide can also move independently in the Z–U–V axis, giving rise to the ability to cut tapered and transitioning shapes. The upper guide can control axis movements in the G Code standard, which allows the wire-cut EDM to be programmed to cut very intricate and delicate shapes.
Manufacturing
Our manufacturing of wire cut EDM machines involves the design and engineering of the machine, the selection of high-quality cast iron and components, the design and assembly of the machine parts, rigorous quality control measures. The process requires specialized knowledge and expertise in several different areas, and the end result is a precision machine that can shape and cut materials with high accuracy and repeatability.
Research and Development
Our manufacturing process includes determining the size and structure of the machine, selecting the type and quality of components and wear parts, and designing the electrical system and programming software. We are constantly exploring new technologies and manufacturing processes to improve the performance, accuracy, and reliability, meanwhile we are also engaged in developing new software and programming to make our wire cut EDM machines more efficient and user-friendly.
Our Service
Proper maintenance and operation of wire cut EDM machines is essential to ensure it can continuously perform accurately and efficiently. It include regular cleaning and inspection of the machine and its components, as well as proper handling and storage of the wire. Operators must also be trained to use the machine properly and safely, and to follow established procedures for programming and operating the machine.
01
Pre-sale service
- Transparent parameters + multi-image display; 24/7 online customer service, with free samples and customized solutions provided.
- Display of cooperation cases, factory capabilities and inspection reports to ensure reliable quality.
02
In-sales Service
- Real-time synchronization of order progress, with design feedback for customized orders provided within 24 hours.

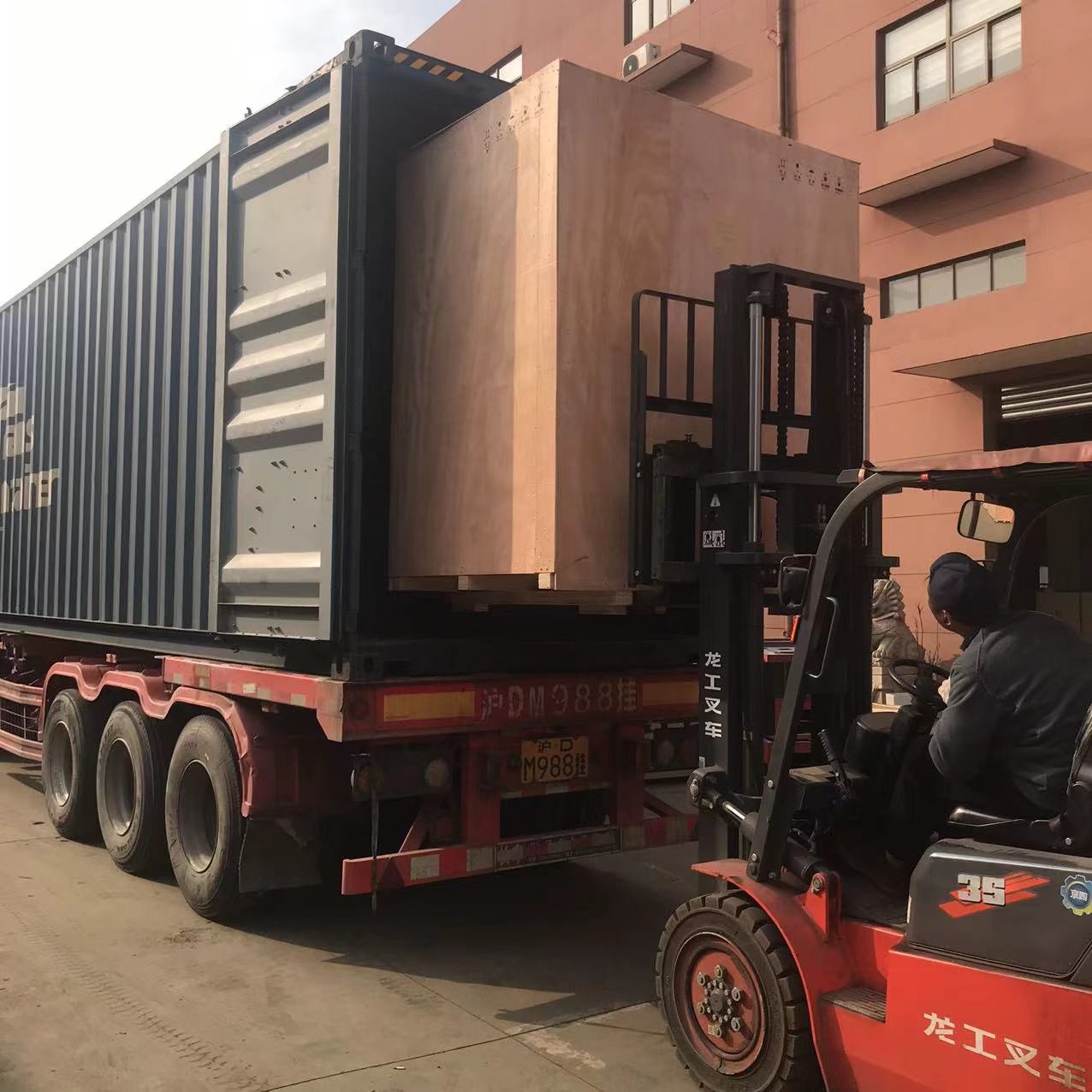

- Provision of multiple logistics options and assistance in handling customs clearance documents for a worry-free and efficient experience.
03
After-sales service
- Global Warranty: 1-year warranty for the whole machine, and 2-year warranty for core components (linear guides, ball screws, CNC systems).
- 24/7 Technical Support: Professional engineers will provide guidance via email, WhatsApp or video call within 1 hour after your inquiry.
