Technical Parameters
|
Item |
Specification |
|
Model |
OL600CR |
|
Work Table Size |
550 × 820 mm |
|
X/Y Axis Travel |
450 × 600 mm |
|
U/V Axis Travel |
60 × 60 mm |
|
Z Axis Travel |
280 mm |
|
Max. Workpiece Thickness |
300 mm |
|
Max. Workpiece Weight |
400 kg |
|
Machine Weight |
2200 kg |
|
Machine Dimensions |
1800 × 1400 × 1800 mm |
|
Max. Taper Angle |
±6° / ±15° / ±30° / 80 mm |
|
Max. Machining Speed |
200 mm²/min |
|
Max. Wire Feeding Rate |
1~11.4 m/sec (Adjustable) |
|
Positioning Accuracy |
±0.01 mm |
|
Repeat Positioning Accuracy |
±0.004 mm |
|
Optimal Machining Accuracy |
±0.004 mm |
|
Surface Roughness |
Ra 1.0 μm |
|
Molybdenum Wire Diameter |
0.10~0.25 mm |
|
Power Supply |
3 Phase / 380V / 50Hz |
|
Power Consumption |
3 kVA |
Standard Configuration
| Axis linkage | XYUV axis simultaneous | |
| Guide rail type | Linear guideway | |
| XYUV axis drive | Servo motor | |
| Z axis drive | Hybrid motor | |
| Central lubrication system | Automatic | |
| Dielectric tank capacity | 110 L | |
| Controller | Vertical control cabinet | |
| Software platform | Window XP/Window 7 | |
| Control system | Auto-cut/ Win-cut/X8 | |
| Language display | Chinese/English/Russian | |
| Monitor | 17" LCD | |
| Digital readout display | XY axis DRO (5μm) | |
| CNC instruction | Standard ISO code | |
| Transmission type | USB/LAN | |
Applications

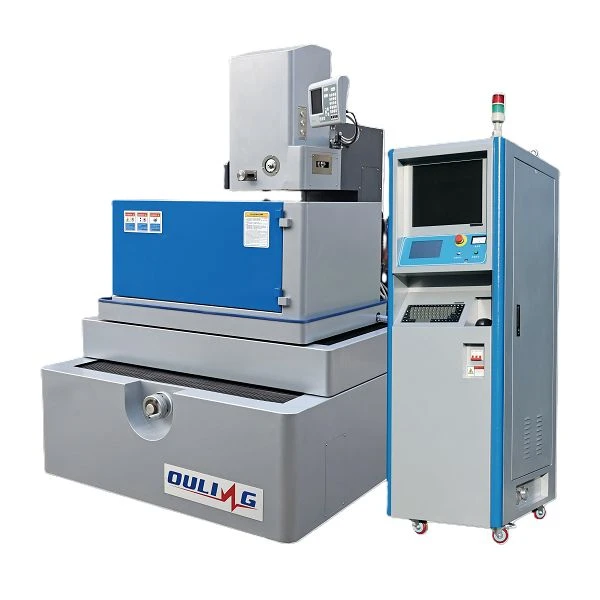

The OL600CR CNC Wire EDM Machine is widely used in:
- Precision mold manufacturing
- Tool and die machining
- Automotive component processing
- Aerospace parts machining
- Medical instrument manufacturing
- Electronics component cutting
- Precision hardware processing
- Carbide and hardened steel machining
FAQ
Q: What Materials Can The OL600CR Process?
A: The machine can process conductive materials including steel, stainless steel, copper, aluminum, carbide, titanium alloy, and hardened metals.
Q: Does This Machine Support Precision Taper Cutting?
A: Yes. The OL600CR supports taper cutting angles of ±6°, ±15°, and ±30° within 80mm thickness.
Q: Which Control Systems Are Available?
A: The machine supports Auto-cut, Win-cut, and X8 CNC control systems.
Q: What Type Of Wire Does The Machine Use?
A: The machine uses molybdenum wire with diameters ranging from 0.10mm to 0.25mm.
Q: Is International Technical Support Available?
A: Yes. We provide remote technical assistance, operation training, installation guidance, and after-sales support for overseas customers.
