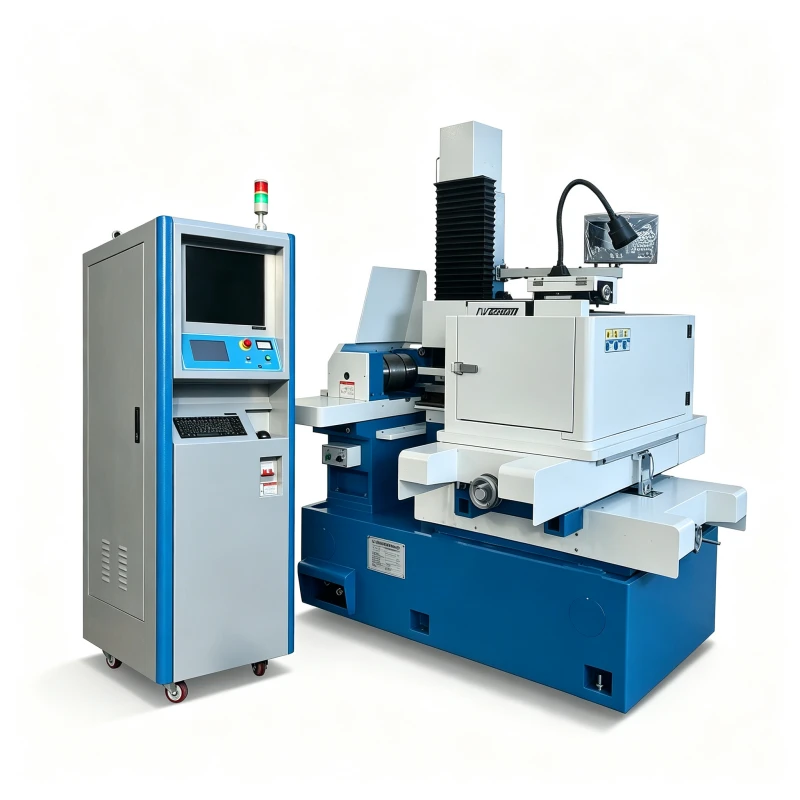

OL3545FM Muitiple Cutting Wire Cut EDM

The OL3545FM Multiple Cutting Wire Cut EDM is designed for small-to-medium conductive workpieces requiring higher machining accuracy and better surface finish through multiple-cut processing. It features a 420 × 710 mm worktable, 350 × 450 mm X/Y travel, 60 × 60 mm U/V travel, and supports workpieces up to 500 mm thick and 300 kg in weight. With ±0.015 mm positioning accuracy, ±0.003 mm repeat positioning accuracy, an optimal machining accuracy of ±0.005 mm, and surface roughness down to 1.2 μm, the OL3545FM is suitable for precision molds, tooling, and high-accuracy Wire EDM cutting applications.
