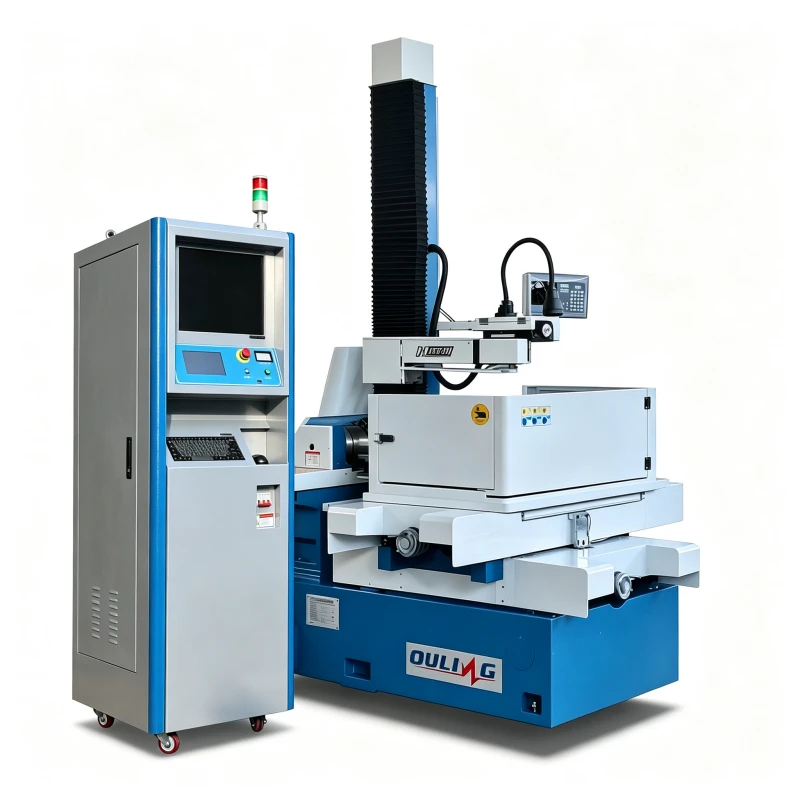

OL5580FM Muitiple Cutting Wire Cut EDM

The OL5580FM Multiple Cutting Wire Cut EDM is designed for medium-to-large conductive workpieces that require higher machining accuracy and improved surface finish through multiple-cut processing. It features a 700 × 1040 mm worktable, 550 × 800 mm X/Y travel, 60 × 60 mm U/V travel, and supports workpieces up to 550 mm thick and 800 kg in weight. With ±0.015 mm positioning accuracy, ±0.003 mm repeat positioning accuracy, an optimal machining accuracy of ±0.005 mm, and surface roughness down to 1.2 μm, the OL5580FM is suitable for precision molds, tooling, and higher-accuracy Wire EDM cutting applications.
