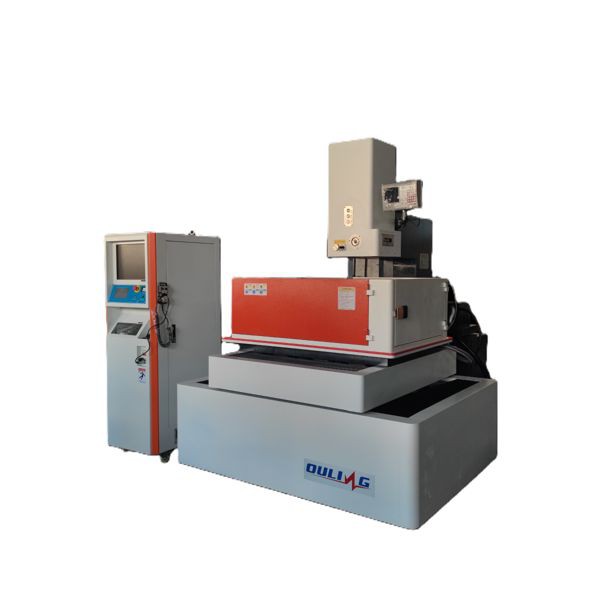

Technical Parameters
|
Item |
Specification |
|
Max. Taper Angle |
±6° / ±15° / ±30° / 80 mm |
|
Max. Machining Speed |
200 mm²/min |
|
Wire Feeding Rate |
1 ~ 11.4 m/sec |
|
Positioning Accuracy |
±0.01 mm |
|
Repeat Positioning Accuracy |
±0.004 mm |
|
Optimal Machining Accuracy |
±0.003 mm |
|
Surface Roughness |
Ra 0.8μm |
|
Wire Diameter |
0.10 ~ 0.25 mm |
|
Power Supply |
3 Phase / 380V / 50Hz |
|
Power Consumption |
3 kVA |
| Mechanical Specification | OL800CT | |
| Work table size | 400*700mm | |
| X/Y axis travel | 630*800mm | |
| U/V axis travel | 60*60mm | |
| Z axis travel | 380mm | |
| Max.workpiece thickness | 400mm | |
| Max. workpiece weight | 1000kg | |
| Machine body weight | 3300kg | |
| Machine body floor area | 2300*1800*2200mm | |
Standard Configuration
| Axis linkage | XYUV axis simultaneous | |
| Guide rail | Linear guideway | |
| XYUV axis drive | Stepper motor/servo motor | |
| Z axis drive | Hybrid motor | |
| Central lubrication system | Automatic | |
| Dielectric tank capacity | 110 L | |
| Controller | Vertical control cabinet | |
| Software platform | Window XP/Window 7 | |
| Control system | Auto-cut/ Win-cut/X8 | |
| Language display | Chinese/English/Russian | |
| Monitor | 17" LCD | |
| Digital readout display | XY axis DRO (5μm) | |
| CNC instruction | Standard ISO code | |
| Transmission type | USB/LAN | |
Standard Configuration
- XYUV simultaneous axis linkage
- Linear guideway
- Stepper motor / servo motor drive
- Hybrid motor for Z axis
- Automatic central lubrication
- 110 L dielectric tank
- Vertical control cabinet
- Windows XP / Windows 7 platform
- Auto-cut / Win-cut / X8 control system
- 17" LCD monitor
- USB / LAN transmission
FAQ
Q: What Materials Can The Machine Process?
A: The OL800CT can process conductive materials such as steel, aluminum, copper, carbide, and titanium alloy.
Q: Does The Machine Support Taper Cutting?
A: Yes, it supports taper cutting up to ±30° at 80 mm thickness.
Q: What Industries Is It Suitable For?
A: It is widely used in mold manufacturing, aerospace, automotive, and precision metal machining industries.
Q: What Is The Maximum Workpiece Weight?
A: The maximum workpiece weight is 1000 kg.
