Products Description
The medium speed wire cut EDM machine is widely used in precision manufacturing for its balanced performance, stable accuracy, and cost efficiency.
At Taizhou Ouling CNC Equipment Co., Ltd., our medium speed EDM machines are engineered to provide reliable cutting performance, consistent precision, and optimized operating cost, making them an ideal choice for a wide range of industrial applications.
types of CNC machining
A medium speed wire cut EDM combines the advantages of both high-speed and low-speed EDM systems:
- Reusable wire for reduced operating cost
- Better surface finish than traditional high-speed machines
- Higher efficiency than low-speed EDM
It is a practical solution for manufacturers seeking precision and economy in one machine.
Key Features
Balanced Cutting Speed & Precision
- Stable machining performance
- Suitable for both rough and semi-finish cutting
- Consistent dimensional accuracy
01
Reusable Wire System
- Multiple-use wire reduces consumable cost
- Lower production expenses compared to single-use systems
- Environmentally friendly operation
02
Intelligent Control System
Integrated with CAXA-CAM system:
- Easy programming and operation
- Stable parameter control
- Reduced operator skill requirements
03
Wide Thickness Processing Capability
- Supports workpieces from 40mm to 200mm
- One-parameter adaptability across thickness ranges
- Suitable for various industrial needs
04

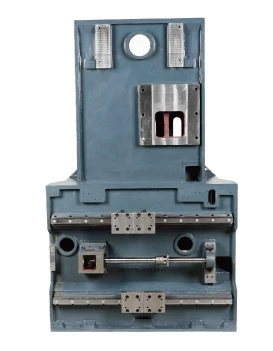

High Stability Machine Structure
- Mineral casting body for improved rigidity
- Reduced vibration during cutting
- Enhanced long-term machining stability
05
Medium Speed vs High Speed Wire EDM
|
Feature |
Medium Speed Wire EDM |
High Speed Wire EDM |
|
Cutting Speed |
Moderate |
Faster |
|
Surface Finish |
Better |
Standard |
|
Wire Consumption |
Lower (reusable) |
Higher |
|
Operating Cost |
More economical |
Higher |
|
Application |
General precision machining |
High-efficiency production |
Applications
Our medium speed wire cut EDM machines are ideal for:
- Mold and die manufacturing
- General precision parts
- Machinery components
- Hardware processing
- Tooling and fabrication industries
Technical Highlights
|
Item |
Description |
|
Machine Type |
Medium speed wire cut EDM |
|
Cutting Thickness |
40mm – 200mm |
|
Control System |
CAXA integrated CNC system |
|
Structure |
Mineral casting body |
|
Operation |
User-friendly CNC control |
Why Choose Medium Speed EDM
For many manufacturers, medium speed wire EDM offers the best balance:
- Lower investment cost
- Stable machining performance
- Reduced consumable usage
- Suitable for a wide range of applications
It is especially ideal for factories looking to control costs while maintaining reliable quality.
Why Choose Ouling CNC
- Established in 2010 with strong EDM manufacturing experience
- Known for stable and durable machine performance
- Advanced technology through industry collaboration
- Focus on practical, user-friendly solutions
- Reliable support for long-term production needs
FAQ
Q1: What is the main advantage of medium speed wire EDM?
A1:It offers a balance between cutting speed, precision, and operating cost.
Q2: Is it suitable for precision machining?
A2:Yes. It provides stable accuracy suitable for most industrial precision requirements.
Q3: Can it process thick materials?
A3:Yes. It supports machining from 40mm to 200mm thickness.
Q4: How does it reduce operating cost?
A4:By using reusable wire and maintaining stable machining conditions.
| Multiple cutting Wire Cut EDM | ||
| Mechanical Specification | OL400ST | |
| Work table size | 400*700mm | |
| X/Y axis travel | 320*400mm | |
| U/V axis travel | 60*60mm | |
| Z axis travel | 300mm | |
| Max.workpiece thickness | 300mm | |
| Max. workpiece weight | 300kg | |
| Machine body weight | 1100kg | |
| Machine body floor area | 1300*1200*1400mm | |
| Technical Parameter | ||
| Max. taper angle/ thickness | ±6°/ ±15°/±30°/80mm | |
| Max. machining speed | 200mm²/min | |
| Max. wire feeding rate | 1~11.4m/sec (frequency adjustable) | |
| Positioning accuracy | ±0.01mm | |
| Repeated positoning accuracy | ±0.004mm | |
| Opitimal machining accuracy | ±0.003mm | |
| Opitimal surface roughness | 0.8μm | |
| Molybdenum wire diameter | 0.10~0.25mm | |
| Power supply | 3 phase/380V/50Hz | |
| Power consumption | 3kVA | |
| Standard Configuration | ||
| Axis linkage | XYUV axis simultaneous | |
| Guide rail type | Linear guideway | |
| XYUV axis drive | Stepper motor/servo motor | |
| Z axis drive | Hybrid motor | |
| Central lubrication system | Automatic | |
| Dielectric tank capacity | 110 L | |

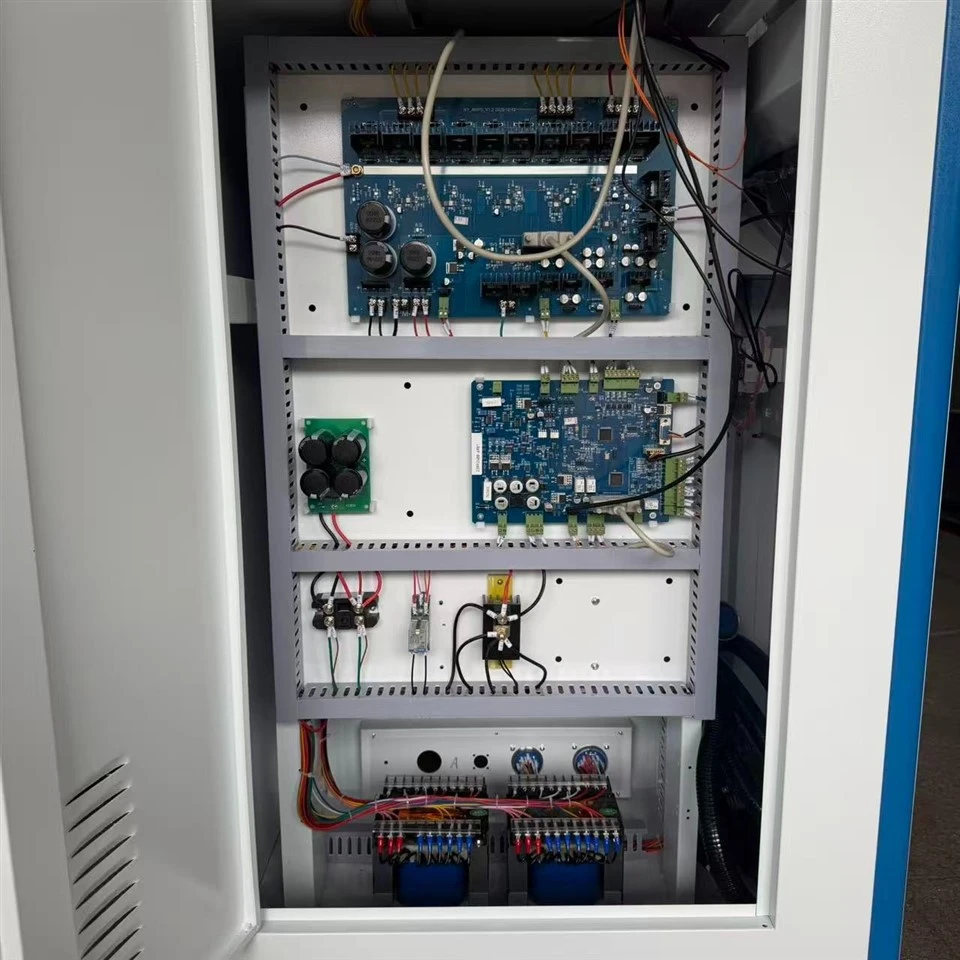

| Controller | Vertical control cabinet | |
| Software platform | Window XP/Window 7 | |
| Control system | Auto-cut/ Win-cut/X8 | |
| Language display | Chinese/English/Russian | |
| Monitor | 17" LCD | |
| Digital readout display | XY axis DRO (5μm) | |
| CNC instruction | Standard ISO code | |
| Transmission type | USB/LAN | |
