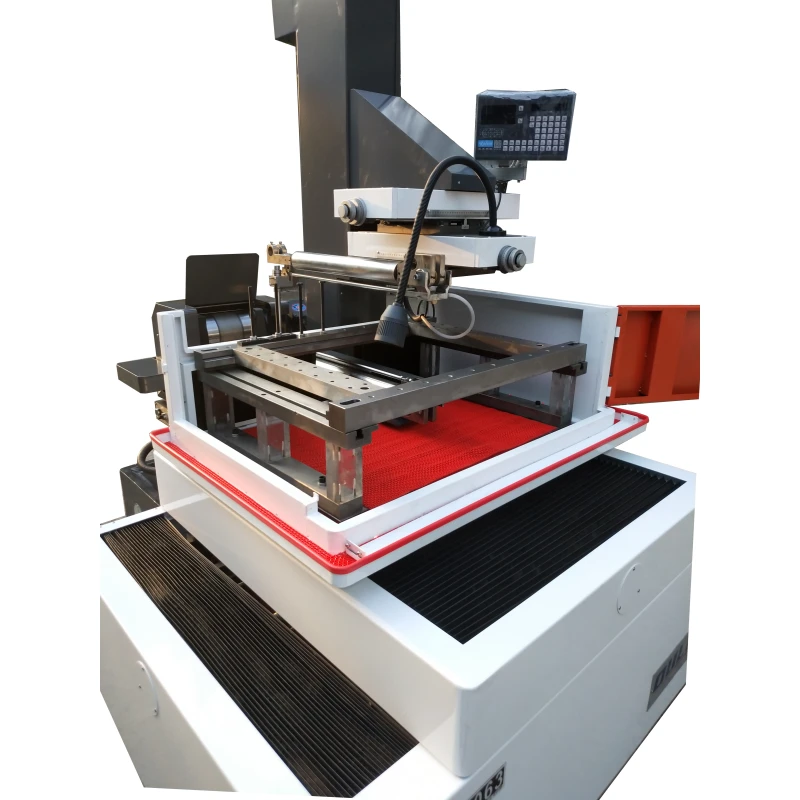

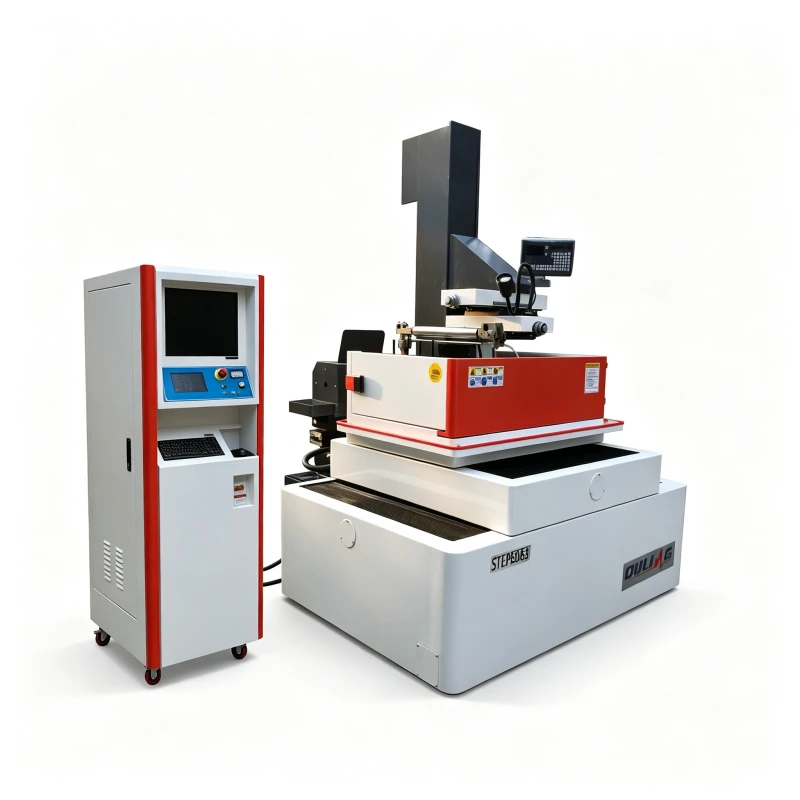

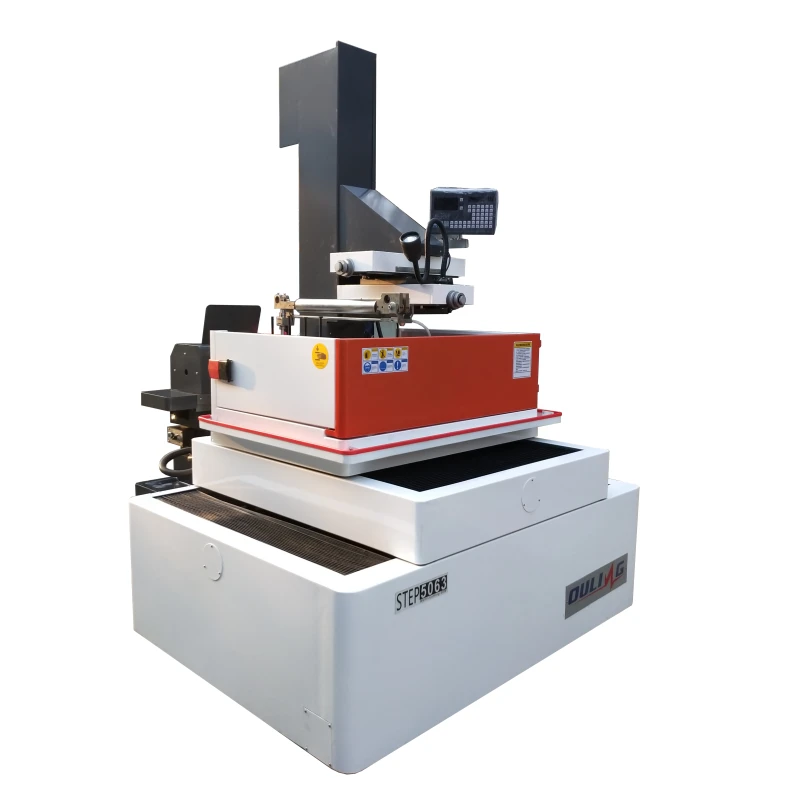

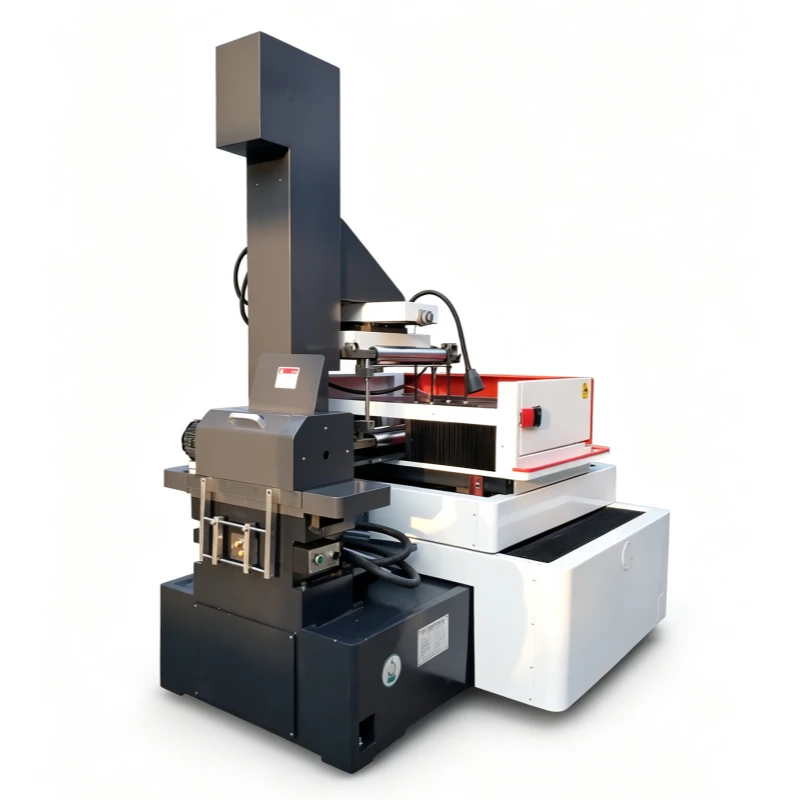

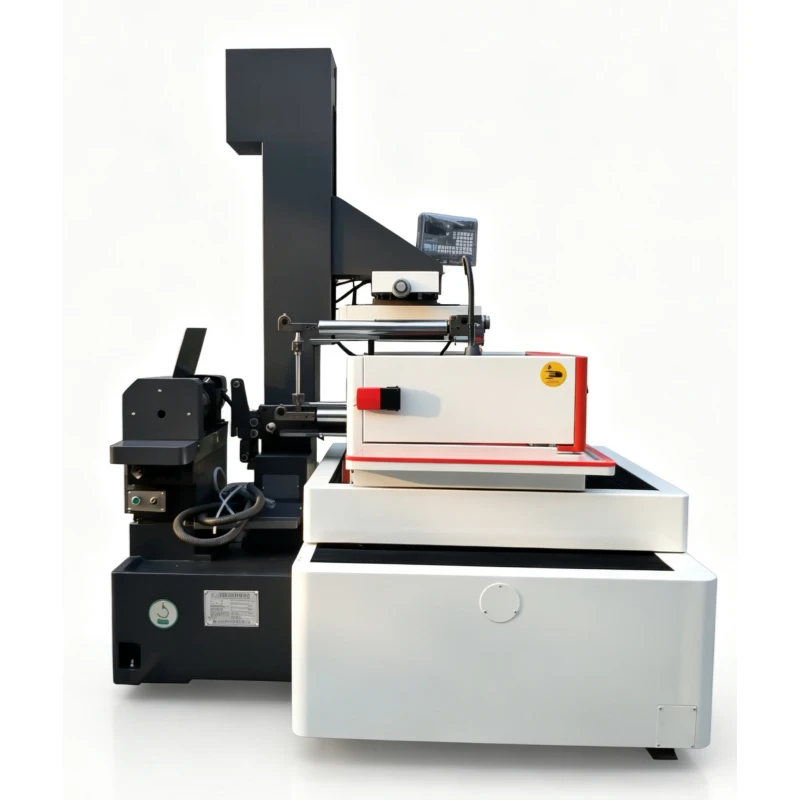

The OL630CT±30° Precision Medium Speed Wire EDM is designed for precision cutting applications requiring a larger taper range and stable machining accuracy. It features a 680 × 960 mm worktable, 500 × 630 mm X/Y travel, 200 × 200 mm U/V travel, and supports workpieces up to 400 mm thick and 800 kg in weight. With a maximum taper capability of ±30° at 80 mm thickness, ±0.01 mm positioning accuracy, ±0.003 mm repeat positioning accuracy, and surface roughness down to Ra 1.2 μm, it is suitable for tapered molds, precision tooling, and complex Wire EDM cutting applications.
| Mechanical Specification | OL630CT±30° | |
| Work table size | 680*960mm | |
| X/Y axis travel | 500*630mm | |
| U/V axis travel | 200*200mm | |
| Z axis travel | 360mm | |
| Max.workpiece thickness | 400mm | |
| Max. workpiece weight | 800kg | |
| Machine body weight | 2600kg | |
| Machine body floor area | 2000*1500*2300mm | |
| Technical Parameter | ||
| Max. taper angle/ thickness | ±30°/80mm | |
| Max. machining speed | 200mm²/min | |
| Max. wire feeding rate | 1~11.4m/sec (frequency adjustable) | |
| Positioning accuracy | ±0.01mm | |
| Repeated positoning accuracy | ±0.003mm | |
| Opitimal machining accuracy | ±0.004mm | |
| Opitimal surface roughness | Ra 1.2μm | |
| Molybdenum wire diameter | 0.10~0.25mm | |
| Power supply | 3 phase/380V/50Hz | |
| Power consumption | 3kVA | |
| Standard Configuration | ||
| Axis linkage | XYUV axis simultaneous | |
| Guide rail | Linear guideway | |
| XYUV axis drive | Stepper motor/servo motor | |
| Z axis drive | Hybrid motor | |
| Central lubrication system | Automatic | |
| Dielectric tank capacity | 110 L | |
| Controller | Vertical control cabinet | |
| Software platform | Window XP/Window 7 | |
| Control system | Auto-cut/ Win-cut/X8 | |
| Language display | Chinese/English/Russian | |
| Monitor | 17" LCD | |
| Digital readout display | XY axis DRO (5μm) | |
| CNC instruction | Standard ISO code | |
| Transmission type | USB/LAN | |
