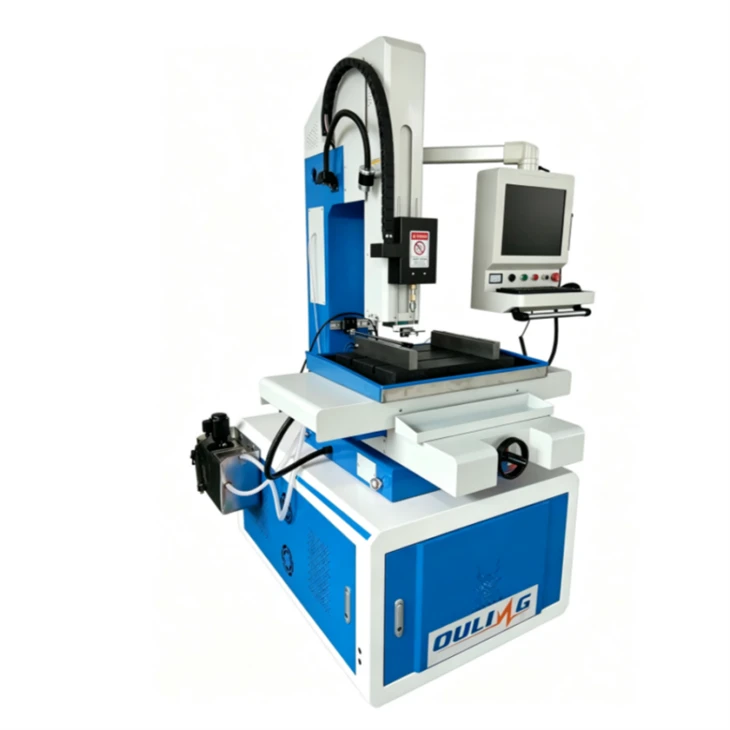

CNC3545 EDM Drilling Machine

1. No manual programming required. Directly import CAD‑generated DXF files for automatic recognition and program generation.

2. Powerful data management with built‑in machining process database. Simply select parameters matching copper tube diameter for processing.

3. Multi‑function handheld controller reduces operation time. Most operations can be completed via the controller for easier use.

4. Intelligent centering function for outer profile and inner hole; automatic center‑finding and angle positioning.

5. Automatic template calibration. No dial‑indicator needed. Workpiece can be fixed freely with automatic system correction.

6. Electrode holding mechanical device ensures stable electrode machining, no manual holding required.

7. Built‑in flushing system equipped on each machine for higher drilling efficiency.

8. X & Y‑axes adopt AC servo motors and AC servo drivers, no step‑loss and no abnormal noise.

9. Z‑axis adopts DC servo motor, featuring fast feed speed and stable tracking performance.

10. Segmented discharge function. Different parameters apply for different depths to achieve burr‑free surface and avoid hole‑burning.

11. Intelligent depth setting. Different holes can be set to different depths within one machining program.

12. Optical sensing penetration device enables faster and accurate penetration detection without misjudgment for higher efficiency.
