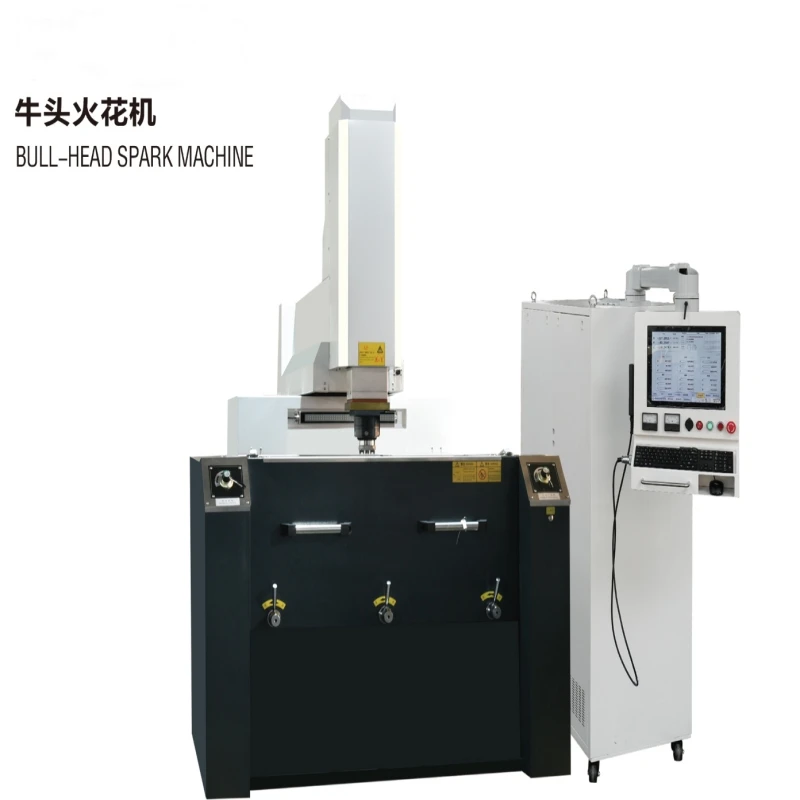

Bull-Head Spark Machine

The CNC120R–CNC150R Double Bull-Head EDM Sinker Machine is built for large and complex mold machining with high-load EDM performance. The series combines a double-head structure with CNC control, offering 50A maximum machining current, Ra 0.1 μm surface finish, 500 mm³/min material removal rate, and 0.4 μm axis resolution. It is suitable for large mold cavities, heavy tooling, and precision EDM applications requiring stable discharge and low electrode wear.

Send Inquiry

Double Bull-Head EDM Sinker Machine
Machine Features
1. Main spindle for models 1680 and above adopts Japanese THK linear guide rails.
2. Models N1680 and above are available with manual or hydraulic device (customer optional).

CNC System Functions
1. Max. machining current: 50A
2. Total input power: 9 KVA
3. Input voltage: 380V
4. Optimal surface roughness: Ra0.1μm
5. Minimum electrode wear: 0.1%
6. Max. material removal rate: 500mm³/min
7. Axis resolution: 0.4μm
8. Minimum drive unit: 1μm

Specifications
Item	Unit	CNC120R	CNC150R
Worktable size	mm	1300×600	1700×900
X, Y, Z travel	mm	650×500×400(double-head)	1000×600×500(double-head)
Max.distance between electrode-head connection plate and woretable	mm	950	600-1100
Max. workpiece weight	kg	6500	9000
Max. electrode weight	kg	180	200
Inner dimension of working fluid tank	mm	2000×1250×600	2400×1400×650
Max. liquid level of working fluid tank	mm	500	600
Main machine weight	kg	10000	12000
Overall dimension (L×W×H)	mm	3500×4000×3100	3600×4500×3500
Total capacity of working oil tank	L	1500	1500
Maximum machining current	A	50	50
Maximum processing speed	mm³/min	400	400
Minimum electrode consumption	%	≤0.3	≤0.3
Optimal surface accuracy	μm	≤0.2	≤0.2
Input power	KVA	9	9
