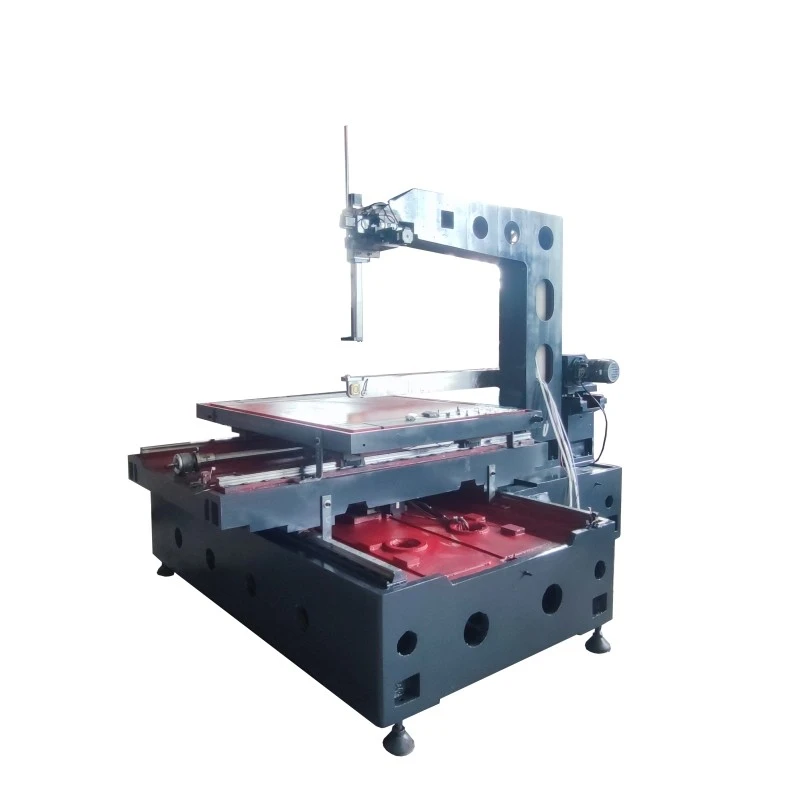

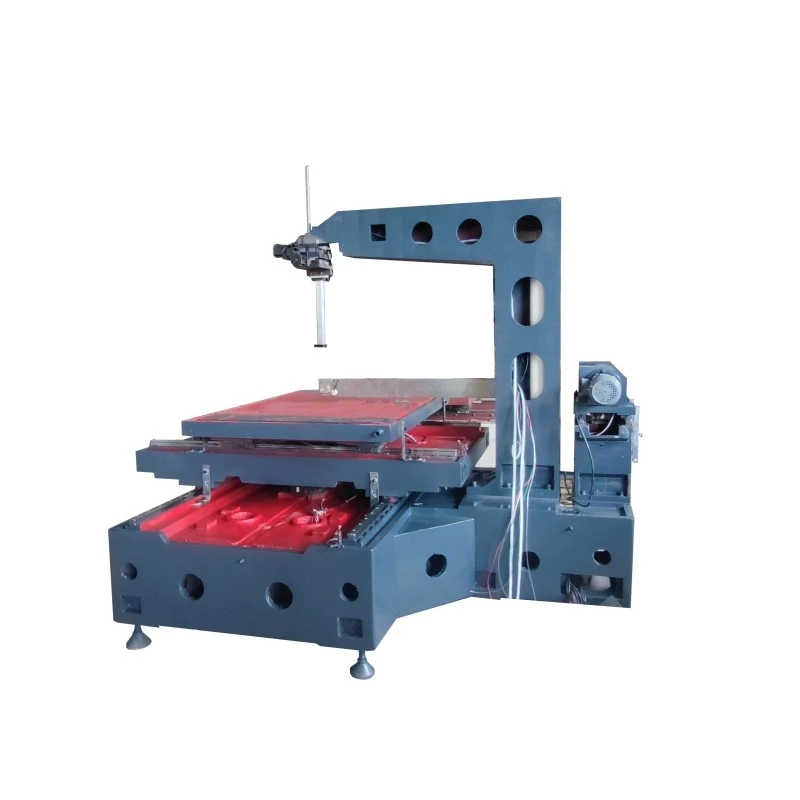

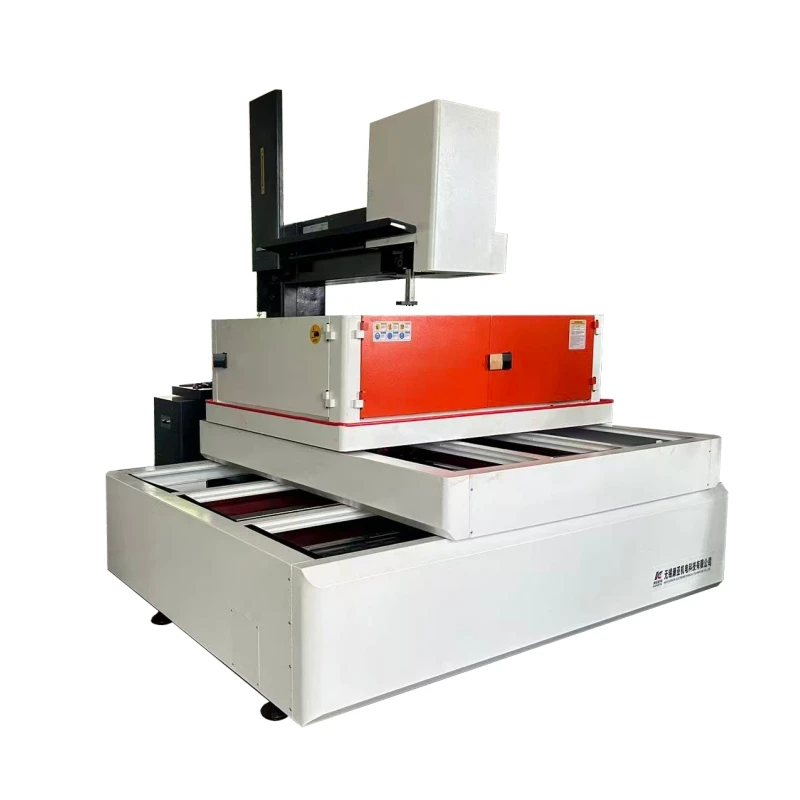

Large-Format Wire EDM for Oversized Molds and Industrial Components
The OL1000CT Large Size Medium Speed Wire EDM is developed for manufacturers that need to process larger conductive workpieces with stable multi-cut performance.
Instead of focusing only on fine precision parts, the OL1000CT is positioned for large molds, large plates, heavy tooling, oversized inserts and industrial components where working space, machine stability and long machining cycles are more important.
Taizhou Ouling CNC Equipment Co., Ltd. provides the OL1000CT for mold factories and machining workshops that require a larger Wire EDM platform for demanding production tasks.
Designed for Larger Workpieces
Large workpieces create different machining challenges from small precision parts.
They often require:
- More working space
- Larger fixture clearance
- Longer cutting paths
- Stable machine movement over extended cycles
- Reliable wire travel during continuous machining
The OL1000CT is designed around these large-format machining requirements, making it suitable for users who regularly handle oversized molds and industrial tooling.
Key Advantages
Larger Machining Capacity
The OL1000CT is suitable for applications where conventional compact Wire EDM machines may not provide enough workpiece space.
Typical applications include:
- Large mold plates
- Large stamping dies
- Automotive tooling
- Large mechanical components
- Oversized inserts
- Heavy-duty fixtures
Stable Long-Cycle Machining
Large workpieces often require longer processing times.
The OL1000CT is designed to maintain stable machining conditions during extended cutting cycles, helping manufacturers reduce interruptions and maintain consistent results across large profiles.
Multi-Cut Capability
The machine supports multiple cutting passes for applications requiring improved surface quality and dimensional consistency.
A typical process can include:
- Initial rough cutting
- Secondary correction cutting
- Finishing passes
This makes the OL1000CT suitable not only for large rough profiles but also for large components requiring controlled finishing quality.
Better Fixture Flexibility
Large parts often need additional space for:
- Clamping
- Supporting plates
- Custom fixtures
- Workpiece positioning
The large-format machine structure gives users more flexibility when setting up oversized or irregular components.
Suitable for Hard Conductive Materials
The OL1000CT can be used for electrically conductive materials including:
- Mold steel
- Hardened steel
- Tool steel
- Stainless steel
- Carbon steel
- Copper
- Aluminum
- Carbide
Wire EDM allows these materials to be processed without direct mechanical cutting force.
Typical Applications
The OL1000CT Large Size Medium Speed Wire EDM is particularly suitable for:
Large Mold Manufacturing
Used for:
- Automotive molds
- Large stamping dies
- Industrial mold plates
- Large inserts
- Tooling components
Heavy Industrial Components
Suitable for:
- Machinery parts
- Heavy fixtures
- Large conductive plates
- Customized industrial components
Large Profile Cutting
Ideal for:
- Long external contours
- Large internal openings
- Wide-profile workpieces
- Irregular large-format shapes
Technical Highlights
| Item | Description |
|---|---|
| Model | OL1000CT |
| Product Type | Large Size Medium Speed Wire EDM |
| Cutting Type | Multiple Cutting |
| Main Positioning | Large workpiece machining |
| Suitable Materials | Conductive metals |
| Main Applications | Large molds, tooling and industrial components |
| Main Advantage | Large working capacity + stable long-cycle machining |
Why Choose OL1000CT?
The OL1000CT is suitable for manufacturers whose main challenge is not only precision, but also workpiece size and production stability.
It offers:
- Larger machining space
- Better suitability for oversized workpieces
- Multi-cut capability
- Stable long-duration processing
- Flexible fixture arrangement
- Suitable performance for large mold manufacturing
- Reusable-wire operating cost advantages
For companies producing large molds or industrial tooling, these factors are often more important than simply selecting a machine based on cutting speed.
Machine Selection Considerations
Before choosing a large Wire EDM machine, customers should consider:
- Maximum workpiece length and width
- Workpiece height
- Workpiece weight
- Fixture space
- Cutting thickness
- Required surface quality
- Production cycle
- Material type
Providing the actual workpiece drawing allows Ouling CNC to evaluate whether the OL1000CT is suitable for the application.
Quality & Service Support
For large-format machines, stable installation and correct setup are especially important.
Ouling CNC can provide support for:
- Machine selection
- Installation preparation
- Machine commissioning
- Operator training
- Maintenance guidance
- Remote technical support
- Spare parts supply
Before shipment, the machine can also undergo functional inspection and trial cutting according to the selected configuration.
FAQ
Q1: What type of customer is OL1000CT suitable for?
It is mainly suitable for mold factories and industrial machining companies processing large molds, large plates, tooling and oversized conductive components.
Q2: What is the main advantage of OL1000CT?
Its main advantage is the larger machining capacity combined with medium-speed multi-cut capability.
Q3: Is it suitable for long machining cycles?
Yes. The OL1000CT is designed for applications where large workpieces may require longer continuous cutting times.
Q4: Can it process hardened mold steel?
Yes. Wire EDM is suitable for electrically conductive hardened materials such as tool steel and mold steel.
Q5: Why choose a large-size Wire EDM instead of a standard model?
A large-size machine provides additional space for bigger workpieces, fixtures and long-profile machining that may not fit standard models.
