Wire Cut EDM, also known as wire electrical discharge machine, is a non-contact subtractive manufacturing process. Unlike traditional cutting tools that physically shear metal, Wire Cut EDM uses controlled electrical sparks to erode conductive workpiece material.
A thin metal wire (usually molybdenum wire or brass wire) acts as one electrode, and the conductive workpiece serves as the second electrode. A continuous stream of dielectric fluid separates the wire and the workpiece. When voltage is applied, sparks generate extremely high local temperature, melting and vaporizing tiny sections of the metal. The wire moves along a programmed path to cut precise shapes through the material. There is no direct contact between wire and part, so no cutting force occurs during machining.
Main Applications
- Mold manufacturing It is widely used to produce punch and die sets, mold inserts, mold cavities for plastic molds and stamping dies. Complex contours and narrow slots can be finished accurately.
- Precision tool & fixture making Manufacture gauges, jigs, cutting tools with tight tolerance requirements.
- Aerospace & automotive components Process hard alloy parts that are difficult to machine by conventional milling.
- Medical and electronic precision parts Thin, delicate conductive components with complicated profiles.
Key Advantages
- Can machine hardened steel, tungsten carbide, titanium and other hard conductive metals
- Extremely high precision, capable of intricate 2D and tapered profiles
- No mechanical cutting force, so thin workpieces will not deform
- Works for parts already heat-treated

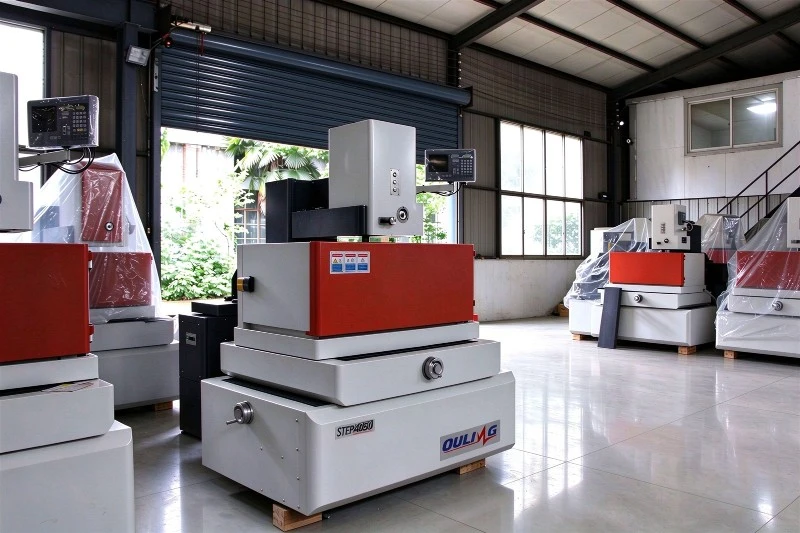

At Ouling EDM, we supply medium-speed Wire Cut EDM machines, Die Sinker EDM and small hole drilling EDM for global mold makers. If you have a project requiring precision wire cut machining, feel free to contact us for technical consultation and quotation.
