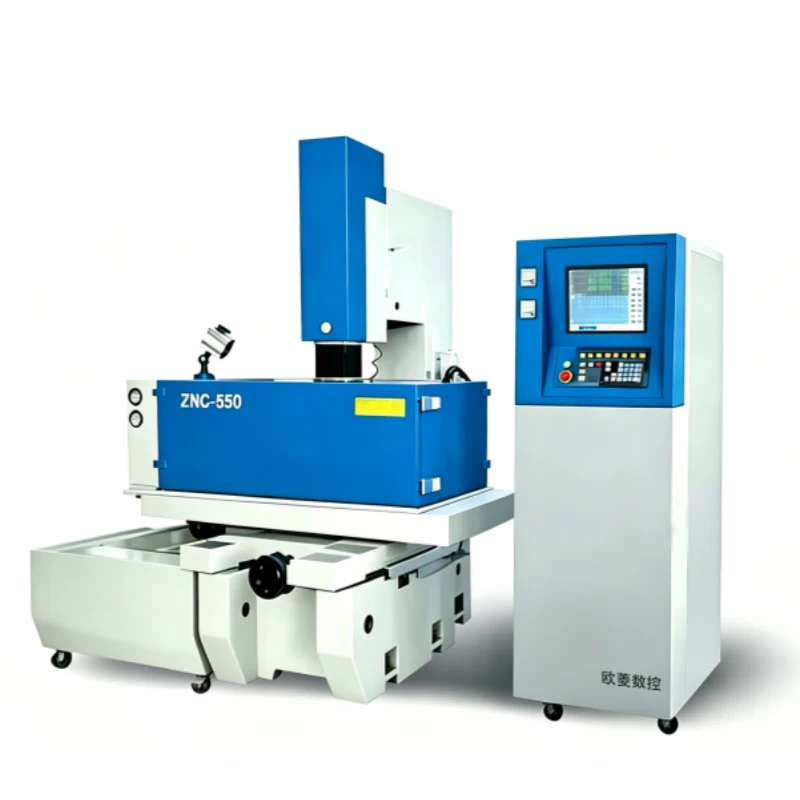

The ZNC550 Heavy Duty ZNC Die Sinker EDM Machine is designed for medium-to-large mold cavity machining, heavy tooling and precision EDM applications. It features a 900 × 500 mm worktable, 550 × 450 mm X/Y travel, and supports workpieces up to 1200 kg and electrodes up to 120 kg.
Built with FC-35 cast iron, precision-grade bearings and an Italian-made oil pump, the ZNC550 is engineered for stable long-term machining. It also includes automatic A.R.C. anti-carbon monitoring, dedicated copper and graphite electrode parameters, and multiple machining modes from rough to ultra-fine.
| Specification | Unit | ZNC550 |
|---|---|---|
| Model | - | ZNC550 |
| Worktable Size | mm | 900 × 500 |
| X/Y-Axis Travel | mm | 550 × 450 |
| Z-Axis Travel | mm | 200 |
| Head Travel | mm | 300 |
| Work Tank Dimensions | mm | 1440 × 860 × 500 |
| Max. Electrode Weight | kg | 120 |
| Max. Workpiece Weight | kg | 1200 |
| Machine Weight | kg | 2500 |
