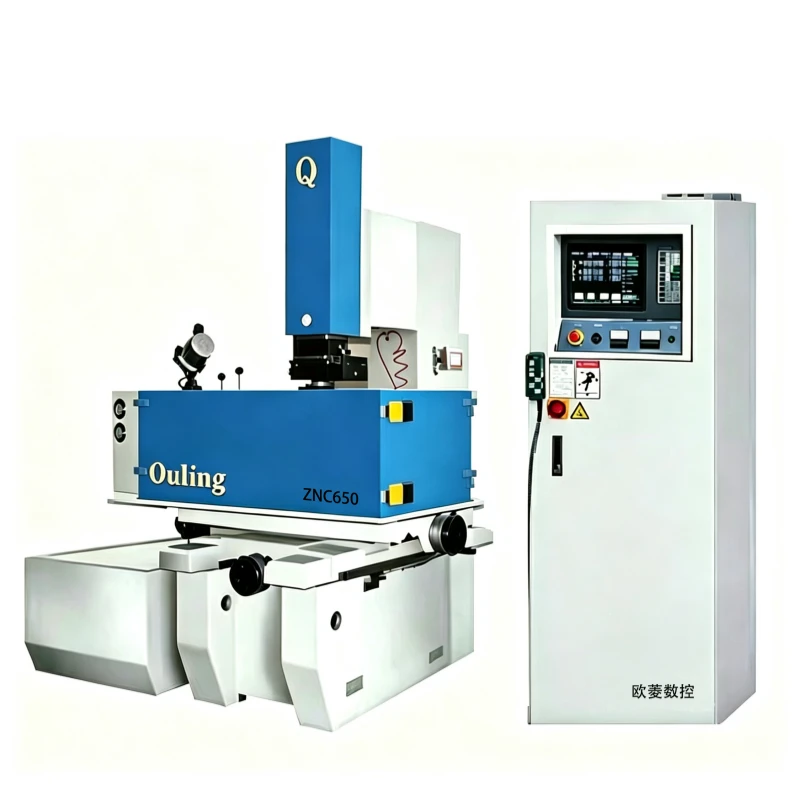

The ZNC650 Large ZNC Die Sinker EDM is designed for large mold cavities, heavy workpieces and precision EDM machining applications. With a 1100 × 650 mm worktable, 650 × 550 mm X/Y travel, and a maximum workpiece capacity of 2000 kg, the ZNC650 provides the working space and load capacity required for large mold manufacturing.
The machine adopts an FC-35 cast iron structure with natural weathering and multi-stage aging treatment to improve structural stability and long-term precision. It also supports dedicated machining parameters for both copper and graphite electrodes, making it suitable for a wide range of mold cavity applications.
| Specification | Unit | ZNC650 |
|---|---|---|
| Model | - | ZNC650 |
| Worktable Size | mm | 1100 × 650 |
| X/Y-Axis Travel | mm | 650 × 550 |
| Z-Axis Travel | mm | 280 |
| Head Travel | mm | 350 |
| Work Tank Dimensions | mm | 1750 × 1080 × 600 |
| Max. Electrode Weight | kg | 200 |
| Max. Workpiece Weight | kg | 2000 |
| Machine Weight | kg | 3600 |
