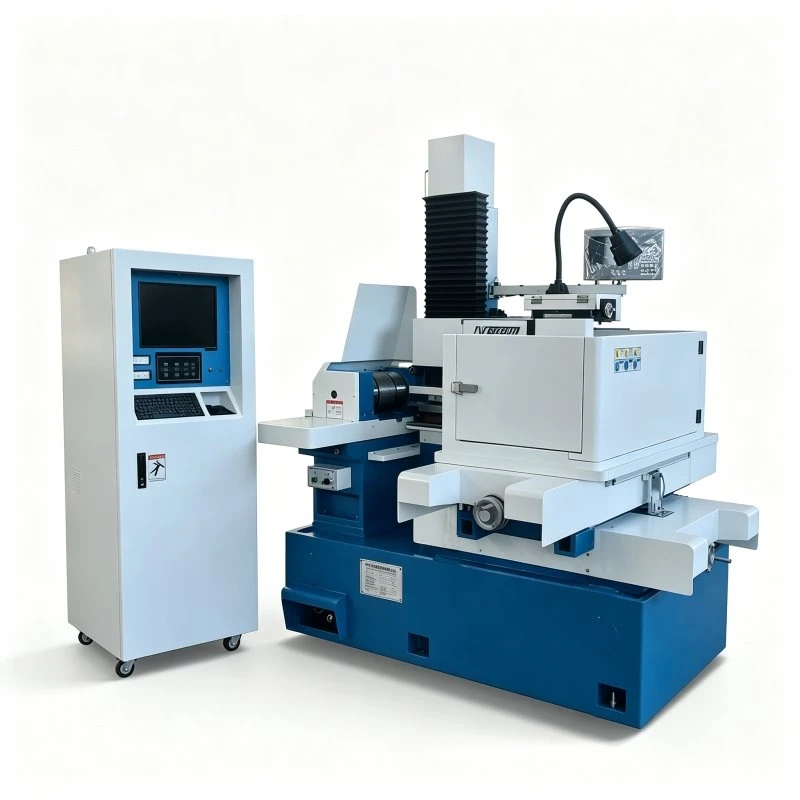

The OL4565FS Single Cutting Wire Cut EDM is designed for medium-size conductive workpieces requiring improved cutting accuracy and stable machining performance. It features a 580 × 860 mm worktable, 450 × 650 mm X/Y travel, 60 × 60 mm U/V travel, and supports workpieces up to 500 mm thick and 500 kg in weight. With ±0.02 mm positioning accuracy, ±0.004 mm repeat positioning accuracy, and an optimal surface roughness of 2.0 μm, the OL4565FS is suitable for precision molds, tooling, and general Wire EDM cutting applications.

Mechanical Specification	OL4565FS
Work table size	580*860mm
X/Y axis travel	450*650mm
U/V axis travel	60*60mm
Z axis travel	460mm
Max.workpiece thickness	500mm
Max. workpiece weight	500kg
Machine body weight	1500kg
Machine body floor area	1720×1260×1700mm
Technical Parameter
Max. taper angle/ thickness	±6°/ ±15°/±30°/80mm
Max. machining speed	150mm²/min
Max. wire feeding rate	1~11.4m/sec (frequency adjustable)
Positioning accuracy	±0.02mm
Repeated positoning accuracy	±0.004mm
Opitimal machining accuracy	±0.006mm
Opitimal surface roughness	2.0μm
Molybdenum wire diameter	0.10~0.25mm
Power supply	3 phase/380V/50Hz
Power consumption	3kVA
Standard Configuration
Axis linkage	XYUV axis simultaneous
Guide rail type	V-shape hardened rail
XY axis drive mode	Stepper motor
Central lubrication system	manual / automatic
Dielectric tank capacity	40 L
Controller	Vertical control cabinet
Software platform	Window XP
Control system	Auto-cut/ Win-cut/X8/HL
Language display	Chinese/English/Russian
Monitor	17" LCD
Digital readout display	XY axis DRO (5μm)
CNC instruction	Standard ISO code
Transmission type	USB/LAN
