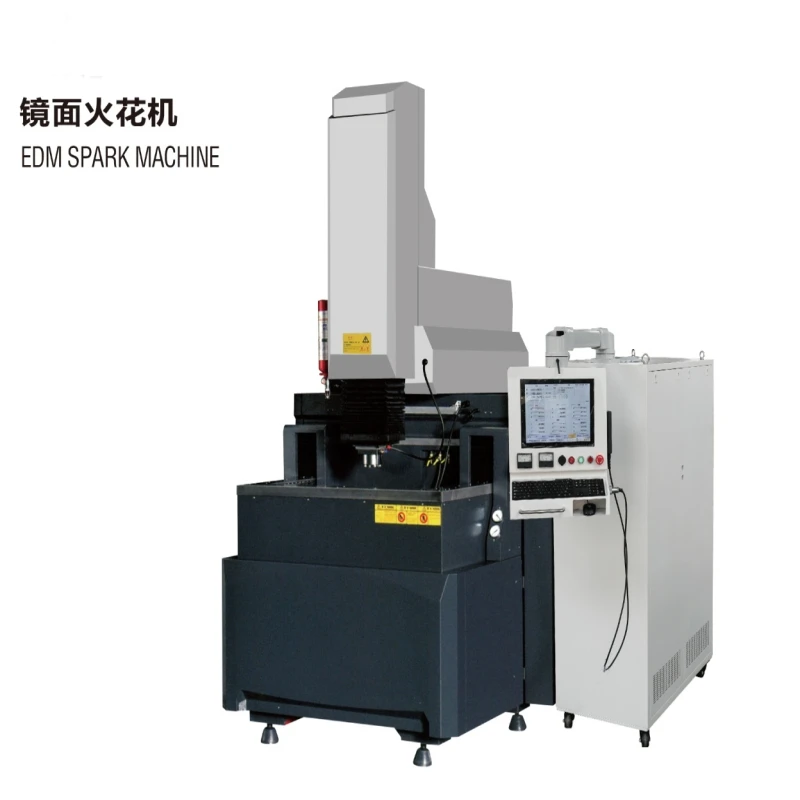

The CM300 Mirror Finish Die Sinker EDM Machine is designed for precision mold cavity machining and applications requiring excellent surface finish with low electrode wear.
Equipped with a 600 × 400 mm worktable, 300 mm X-axis travel, 210 mm Y-axis travel, and 270 mm Z-axis travel, the CM300 is especially suitable for small and medium-sized precision molds, inserts, electrodes and complex cavities.
With a best surface roughness of Ra < 0.1 μm, maximum machining current of 50A, and electrode wear below 0.1%, the CM300 provides a reliable solution for precision EDM finishing and mirror-surface mold processing.
Key Features
Mirror Finish EDM Performance
The CM300 is developed for applications where surface quality is an important requirement.
The machine can achieve:
- Best surface roughness: Ra < 0.1 μm
- Low electrode consumption: < 0.1%
- Maximum working current: 50A
- Maximum productivity: ≥500 mm³/min
This allows the machine to balance machining efficiency with fine surface quality.
Compact Precision Machining Range
The CM300 provides:
- X-axis travel: 300 mm
- Y-axis travel: 210 mm
- Z-axis travel: 270 mm
Its compact working range makes it suitable for precision mold components and smaller cavity applications where stable fine machining is more important than extra-large travel.
High-Rigidity Structure
The CM300 is designed with high rigidity to support stable machining during both roughing and finishing operations.
A rigid machine structure helps reduce vibration and deformation during long EDM cycles, supporting more consistent dimensional accuracy and surface quality.
Low Electrode Wear
Electrode wear can directly affect cavity accuracy and machining cost.
With electrode consumption controlled below 0.1%, the CM300 is suitable for precision mold applications where electrode profile retention is important.
High Machining Efficiency
The machine provides a maximum productivity of ≥500 mm³/min, allowing it to perform both cavity material removal and fine finishing within one EDM platform.
CM300 Technical Specifications
| Item | CM300 |
|---|---|
| Model | CM300 |
| Working Table Size | 600 × 400 mm |
| X-Axis Travel | 300 mm |
| Y-Axis Travel | 210 mm |
| Z-Axis Travel | 270 mm |
| Max. Distance Between Electrode Connecting Plate and Worktable | 536 mm |
| Maximum Workpiece Weight | 400 kg |
| Maximum Electrode Weight | 25 kg |
| Work Tank Size | 950 × 620 × 410 mm |
| Highest Working Oil Level | 247 mm |
| Liquid Storage Tank Capacity | 600 L |
| Machine Weight | Approx. 2000 kg |
| Machine Dimensions | 1300 × 1300 × 2241 mm |
| Maximum Working Current | 50 A |
| Maximum Productivity | ≥500 mm³/min |
| Best Surface Roughness | Ra < 0.1 μm |
| Minimum Electrode Wear | <0.1% |
| Total Machine Power | 9 kW |
Typical Applications
The CM300 Mirror Finish Die Sinker EDM Machine is suitable for:
- Precision injection molds
- Small and medium mold cavities
- Mold inserts
- Precision dies
- Electronic component molds
- Medical component tooling
- Complex internal profiles
- Fine EDM finishing
- Mirror-surface cavity machining
Optional Accessories
Optional configurations include:
- Special EDM dielectric fluid
- C-axis (4th axis)
- R-axis rotary unit
- Dielectric fluid thermostat unit
- Three-phase voltage-stabilized power supply
- Various tooling fixtures
These options allow the CM300 to be configured according to different machining requirements.
Why Choose CM300?
The CM300 is especially suitable for manufacturers that need a compact Mirror Finish Die Sinker EDM with strong finishing performance.
Key advantages include:
- Ra < 0.1 μm mirror finishing capability
- Low electrode wear below 0.1%
- 50A maximum machining current
- Compact 300 × 210 × 270 mm travel
- 400 kg workpiece capacity
- High rigidity and precision
- Suitable for precision cavity and insert machining
FAQ
Q1: What Surface Roughness Can The CM300 Achieve?
A1: The best specified surface roughness is Ra < 0.1 μm.
Q2: What Is The Maximum Workpiece Weight?
A2: The CM300 supports workpieces up to 400 kg.
Q3: What Is The Maximum Electrode Weight?
A3: The maximum electrode weight is 25 kg.
Q4: Is The CM300 Suitable For Precision Mold Finishing?
A4: Yes. Its low electrode wear and Ra < 0.1 μm surface capability make it suitable for precision mold and mirror-finish EDM applications.
Q5: Can A Rotary Axis Be Added?
A5: Yes. Optional C-axis and R-axis rotary units are available.
